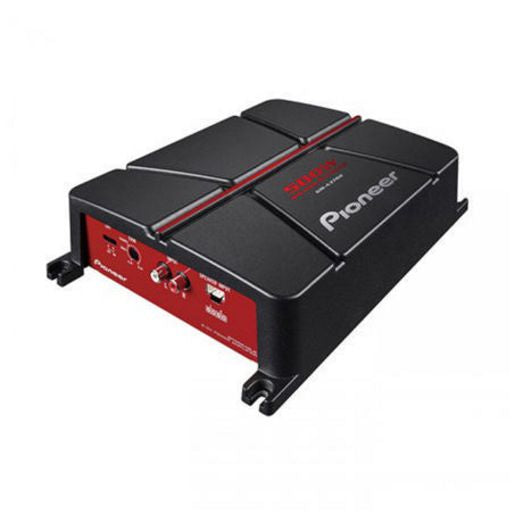

Pioneer GM-A3702 500W 2-Channel Bridgeable Amplifier
NOW
£113.00
afterpay
Or 4 interest-free payments of
£28.25
In stock at 1 of our locations
🚛
Free NZ shipping
🔒
12 month warranty on all parts
✅
NZ WOF compliant
🔧
Fitting available NZ wide
Intended to enhance your in-car audio, the GM-A3702 is a 2-channel bridgeable amplifier that automatically selects the proper input signal mode, either RCA or speaker level.
SPECIFICATIONS
GENERAL
RCA Inputs: 2-CH
Amplifier Class: Class AB
Hi-Res Certified: No
Bridgeable: Yes
Warranty: 1 Year
Speaker Level Input: Yes
Fuse Rating: 25A x 1
Bass Boost Remote: No
Automatic Signal Sensing and Turn-On: Yes
Hi-Volt Input Level Control: 0.3V to 6.5V (RCA in), 3.0V to 26V (SP in)
Terminal Type: Screw
Load Impedance Allowance (Ohms): 2 to 4
Protection Control System: Yes
Dimensions: 246(W) X 60(H) X 180(D) mm
POWER
Continuous Power (RMS) Output @ 1Ω: N/A
Continuous Power (RMS) Output @ 2Ω: 95W x 2
Continuous Power (RMS) Output @ 4Ω: 60W x 2
Continuous Power (RMS) Output - Bridged @ 4Ω: 190W x 1
AUDIO ADJUSTMENTS
Low-Pass Crossover Frequency: 80 Hz
Low-Pass Slope (dB/octave): -12db/oct (A/B CH)
High-Pass Crossover Frequency: N/A
Bass Boost Frequency: 50 Hz
Bass Boost Level: 0/6/12dB
AUDIO SPECIFICATIONS
Frequency Response: 10Hz ~ 70kHz
Total Harmonic Distortion: (THD) <0.05 %
Signal-to-Noise (SN) Ratio: >95 dB
SPECIFICATIONS
GENERAL
RCA Inputs: 2-CH
Amplifier Class: Class AB
Hi-Res Certified: No
Bridgeable: Yes
Warranty: 1 Year
Speaker Level Input: Yes
Fuse Rating: 25A x 1
Bass Boost Remote: No
Automatic Signal Sensing and Turn-On: Yes
Hi-Volt Input Level Control: 0.3V to 6.5V (RCA in), 3.0V to 26V (SP in)
Terminal Type: Screw
Load Impedance Allowance (Ohms): 2 to 4
Protection Control System: Yes
Dimensions: 246(W) X 60(H) X 180(D) mm
POWER
Continuous Power (RMS) Output @ 1Ω: N/A
Continuous Power (RMS) Output @ 2Ω: 95W x 2
Continuous Power (RMS) Output @ 4Ω: 60W x 2
Continuous Power (RMS) Output - Bridged @ 4Ω: 190W x 1
AUDIO ADJUSTMENTS
Low-Pass Crossover Frequency: 80 Hz
Low-Pass Slope (dB/octave): -12db/oct (A/B CH)
High-Pass Crossover Frequency: N/A
Bass Boost Frequency: 50 Hz
Bass Boost Level: 0/6/12dB
AUDIO SPECIFICATIONS
Frequency Response: 10Hz ~ 70kHz
Total Harmonic Distortion: (THD) <0.05 %
Signal-to-Noise (SN) Ratio: >95 dB
