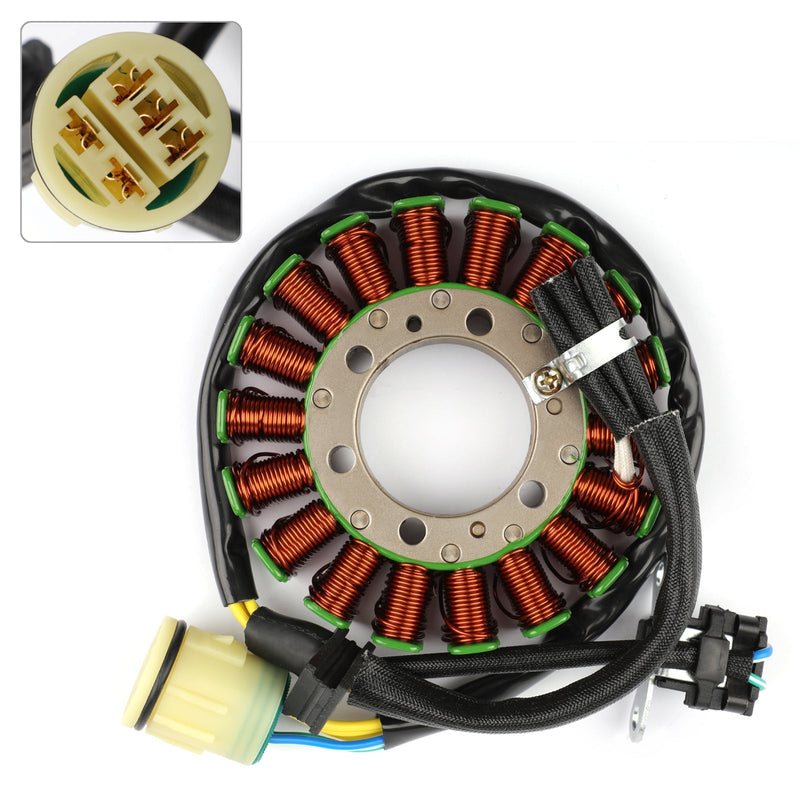

Honda TRX420 Rancher FE FM 2007 2008 2009 2010-2013 Generic Generator Stator Coil
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
All products shipped are tested
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
OEM Replacement Part Number: 31120-HP5-601,31120-HP5-A51
Dimensions :
Interior diameter : 41 mm / 1.64"
Exterior diameter : 107 mm / 4.22"
Thickness : 18 mm /0.72"
Other specifications :
Number of wires : 5
Number of plugs : 1
Number of pins : 5
FITMENT:
For Honda TRX420 Rancher FE 2007-2013
For Honda TRX420 Rancher FM 2007-2013
For Honda TRX420 Rancher TE 2007-2013
For Honda TRX420 Rancher TM 2007-2013
For Honda TRX420 Rancher FPE 2009-2013
For Honda TRX420 Rancher FPM 2009-2013
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Magneto Generator Engine Stator Coil For Honda TRX420 Rancher FE FM TE TM FPE FPM 2007-2013
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
