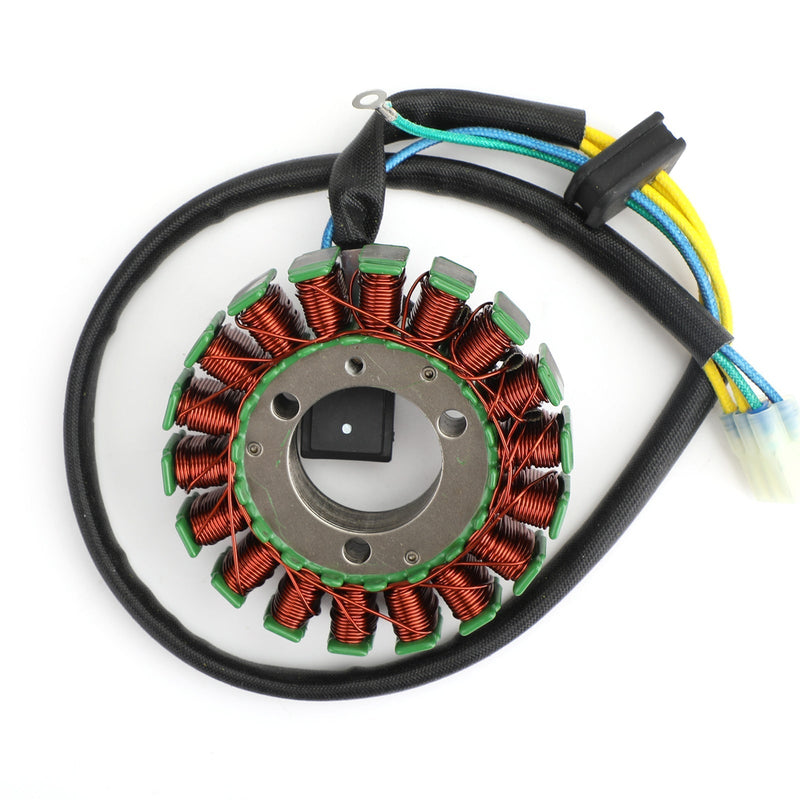

Polaris Phoenix 200 2005-2024 Sawtooth 200 2006-2007 5-Wire Magneto Generator Stator 95mm Fit

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil

other specifications:
Number of wires : 5
Number of pins : 5
Number of plugs : 1
Number of fixation holes: 3
Number of poles: 18

Dimensions:
Interior diameter: 35mm
Exterior diameter: 95mm

Replacement Part Number:
0452449
0454228
0454947

Fits Make/Model/Year:
Fit for Polaris Phoenix 200 2005-2024
Fit for Polaris Phoenix 200 Quadricycle 2005-2006
Fit for Polaris Phoenix 200 Quad 2008-2010
Fit for Polaris Phoenix 200 MD 2017-2024
Fit for Polaris Sawtooth 200 2006-2007
Fit for Polaris Sawtooth 200 Quad 2006

Package Included:
1x Stator Generator

NOTICE:
Before installing your new stator

Please compare the number of pins and plugs with the old part before purchasing.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
